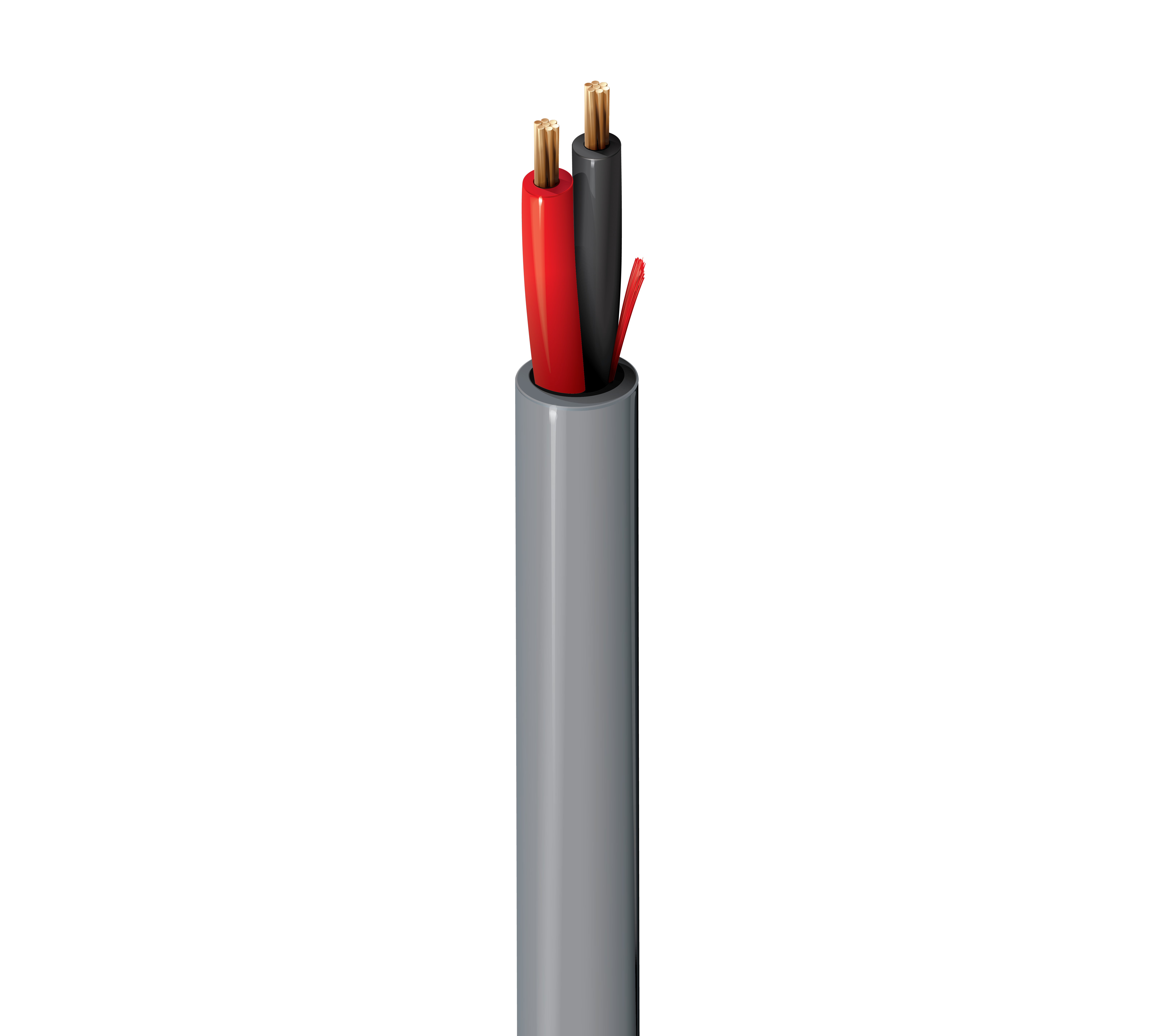

Belden 5300UE Security & Sound, 2 Conductor 18 AWG, BC, CMR Belden 2 Core Unshielded 18 Awg

SKU: BELDEN-5300UE

Security & Commercial Audio Cable, Riser-CMR, 2-18 AWG stranded bare copper conductors with polypropylene insulation, PVC jacket with ripcord.

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

 98,0001

10 People watching this product now!
  • Pick up from the Woodmart Store

To pick up today

Free

  • Courier delivery

Our courier will deliver to the specified address

2-3 Days

Free

  • DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

Free

  • Warranty 1 year
  • Free 30-Day returns

Payment Methods:

Description

Best Price in Pakistan Belden. Belden Best Price in Pakistan, Belden in wholesale rate available.

Belden 5300UE Available in Pakistan. Belden 5300UE Available in Karachi. Belden 5300UE Available in Lahore. Belden 5300UE Available in Islamabad. Belden 5300UE Available in Rawalpindi. Belden 5300UE Available in Multan. Belden 5300UE Available in Hyderabad.

Product Overview
Suitable Applications Monitor/Detection, Control Circuits, Initiating Circuits, Notification Circuits
Construction Details
CONDUCTOR
Element No. of Elements Size Stranding Material
Conductor(s) 2 18 AWG 7×26 BC – Bare Copper
INSULATION
Element Material Nom. Thickness Nom. Insulation Diameter Color Code
Conductor(s) PO – Polyolefin 0.009 in (0.23 mm) 0.062 in (1.6 mm) Black, Red
OUTER JACKET
Material Nom. Thickness Nom. Diameter Ripcord
PVC – Polyvinyl Chloride 0.017 in (0.43 mm) 0.158 in (4.01 mm) Yes
Overall Cable Diameter (Nominal) 0.158 in (4.01 mm)
Electrical Characteristics
ELECTRICALS
Element Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Max. Current
Conductor(s) 6.5 Ohm/1000ft 21.5 pF/ft (70.5 pF/m) 5 Amps per conductor @ 25°C
VOLTAGE
UL Voltage Rating
300 V (CMR)
Mechanical Characteristics
TEMPERATURE
UL Temperature Operating
75°C -20°C to +75°C
BEND RADIUS
Stationary Min. Installation Min.
1.6 in (41 mm) 1.6 in (41 mm)
Max. Pull Tension 45 lbs (20 kg)
Bulk Cable Weight 15 lbs/1000ft
Standards and Compliance
Environmental Suitability Indoor – Riser, Indoor
Flammability / Reaction to Fire UL 1666 Riser, FT4, IEC 60332-1-2
CPR Compliance CPR Euroclass: Eca; CPR UKCA Class: Eca
NEC / UL Compliance Article 800, CMR
CEC / C(UL) Compliance CMG
European Directive Compliance EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
UK Regulation Compliance UKCA Mark
APAC Compliance China RoHS II (GB/T 26572-2011)
Plenum Number 6300UE
History
Update and Revision Revision Number: 0.510 Revision Date: 02-15-2024
